  1. Electronics
  2. Add-on Modules

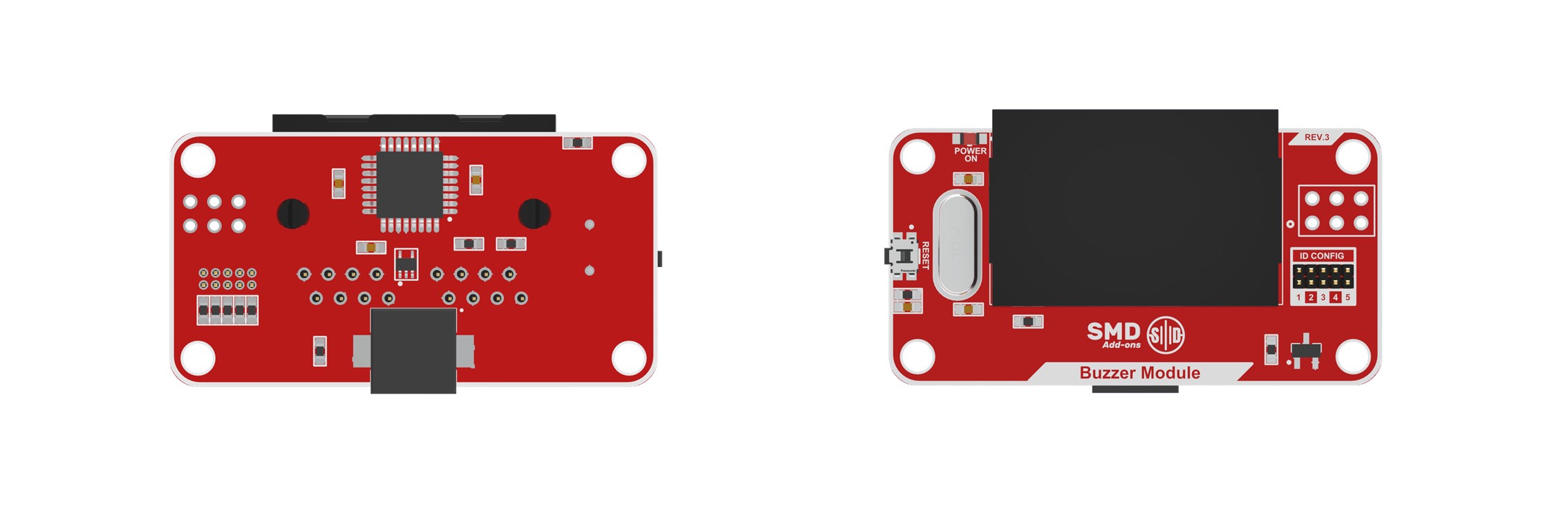

Buzzer Module

PreviousButton ModuleNextIMU Module

Last updated 9 months ago

Here is the on the module.

The Buzzer Module is an auditory feedback device. It is a perfect tool for educational purposes, alarm - security systems, musical systems and many other projects. Since it can emit sound with different frequencies, it can play different notes and create melodies.

The buzzer on the module is waiting for a input from the microcontroller. When a certain frequency provided, buzzer gets the required electrical signals and emit the sound with intended frequency.

Step Files:

Here are some of the sample projects that include this module:

(including: + + +)

The Python-based "Buzzer On/Off" application integrates an SMD Motor Driver, an add-on Buzzer Module, and an HC-SR04 Ultrasonic Sensor Module to form an interactive system that reacts to nearby objects. The project is crafted to demonstrate the practical application of combining hardware components with Python programming.

(including: + + +)

The "Security System" application is a Python-based project that leverages hardware components to create a simple yet effective security monitoring system. This project utilizes an SMD Motor Driver, an RGB LED Module, a Buzzer Module, and an HC-SR04 Ultrasonic Distance Module. The system is designed to activate an alarm and visual warning signals if the detected distance falls below a predetermined threshold.

Smart Doorlbell
SMD RED
RGB Module
Ultrasonic Distance Sensor Module
Buzzer Module
Seccurity System
SMD RED
RGB Module
Ultrasonic Distance Sensor Module
Buzzer Module
datasheet of the buzzer (PKMCS0909E4000-R1)
4MB
Buzzer Module Rev3.step
Buzzer Module
